PT-450 7.5KW VERTICAL Custom Mold Liquid Silicone Molding Machine
Product Details:
| Place of Origin: | Zhejiang, China |
| Brand Name: | NING BO PENG TAI |
| Certification: | CE ISO9001 |
| Model Number: | PT-450 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | custom mold liquid silicone molding machineWooden case packing, fumigation treatment |
| Supply Ability: | 300 Set/Sets per Month custom mold liquid silicone molding machine |
|
Detail Information |
|||
| Condition: | New | Style: | VERTICAL |
|---|---|---|---|
| Clamping Force: | 450KN | Type: | Tube Head Injection |
| Place Of Origin: | Zhejiang, China | Model Number: | PT-450 |
| Brand Name: | NING BO PENG TAI | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Plastic Type: | Thermoplastic | Power: | 7.5KW |
| Injection Rate: | 36cm3/sec-71cm3/sec | Automatic: | Yes |
| Certification: | CE ISO9001 | Opening Stroke: | 200mm |
| Injection Weight: | 54g-105g | Screw Diameter: | 25-35mm |
| Screw Stroke: | 120mm | Screw Speed Max: | 0-205rpm |
| Injection Pressure: | 1742kg/cm2 | Investment Size: | 390*430mm |
| Machine Dimension(L*W*H): | 2.35m*1.1m*2.2m | Platen Size: | 580*430mm |
| Machine Weight: | 1.5T | Keyword: | Custom Mold Liquid Silicone Molding Machine |
| Warranty: | 1 Year | ||
Product Description

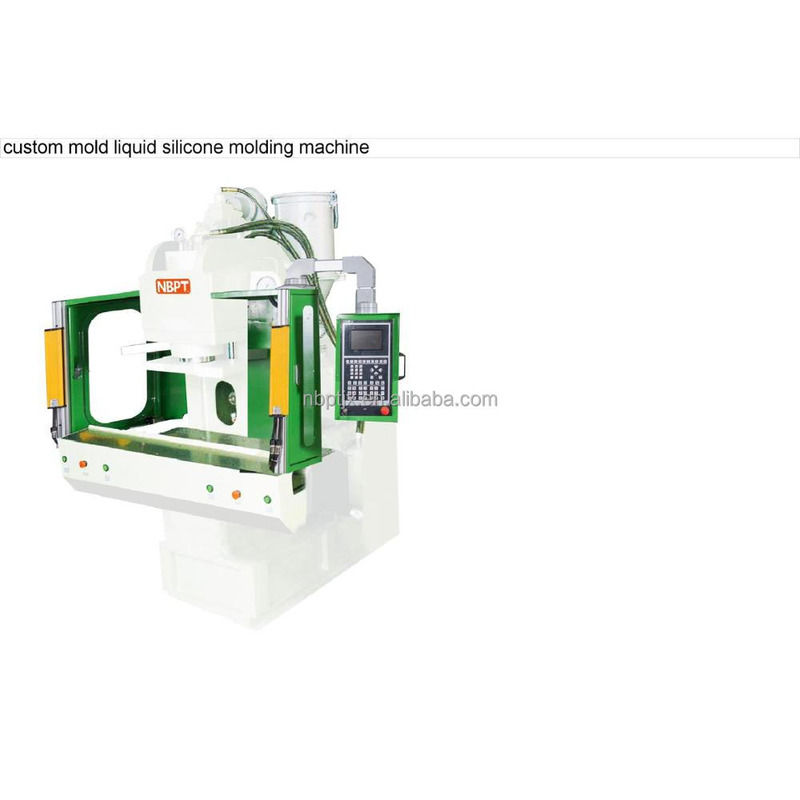

custom mold liquid silicone molding machine
Characteristic:
Injection can be divided into fast and slow injection , injection pressur of three stroke control ,
time control, can be adjusted, convenient and accuracy.
The lower mould is fixed , the upper die is closed , the sealing is good for the inserted articles ,
and the finished product is pushed out.
Low pressure die closing device protects die and prolongs die life.
Compute control , with Hao screen, simple operation, convenient and intuitive.
The heating plate can be added according to the requirement.
