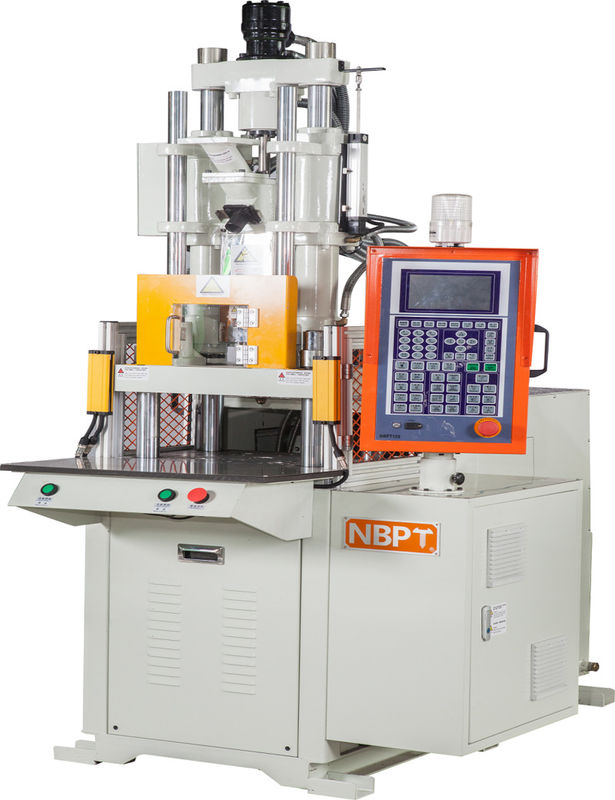

45T Plastic Vertical Precision Injection Molding Machine VERTICAL
Product Details:
| Place of Origin: | Zhejiang, China |
| Brand Name: | NING BO PENG TAI |
| Certification: | CE ISO9001 |
| Model Number: | PT-450 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Packaging Details: | Wooden case packing, fumigation treatment |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Style: | VERTICAL |
|---|---|---|---|
| Clamping Force: | 450KN | Type: | Tube Head Injection |
| Place Of Origin: | Zhejiang, China | Model Number: | PT-450 |
| Brand Name: | NING BO PENG TAI | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Plastic Type: | Thermoplastic | Power: | 7.5KW |
| Injection Rate: | 36cm3/sec-71cm3/sec | Automatic: | Yes |
| Certification: | CE ISO9001 | Opening Stroke: | 200mm |
| Injection Weight: | 54g-105g | Screw Diameter: | 25-35mm |
| Screw Stroke: | 120mm | Screw Speed Max: | 0-205rpm |
| Injection Pressure: | 1742kg/cm2 | Investment Size: | 390*430mm |
| Machine Dimension(L*W*H): | 2.35m*1.1m*2.2m | Platen Size: | 580*430mm |
| Machine Weight: | 1.5T | Keyword: | Injection Moulding Machine |
| Warranty: | 1 Year | ||
Product Description
Characteristic:
Vertical die locking. Vertical injection.Small footprint ,smart and precise ,suitable for injection molding of small and medium sized embedded parts.
Double cylinder injection system ,high injection pressure ,speed fast, thin molding best choice.
Direct pressure mode locking , stress distribution, low voltage protection fine Atoll, the whole process is fluency and execllent.
According to the characteristics of embedded parts and capacity requirements, it is equipped with skateboards and turntabie type machines to achieve the goal of minimum input and maximum output.
Scalable programming ,and self-embedded,take out equipment connections, to achieve full self-operation.
